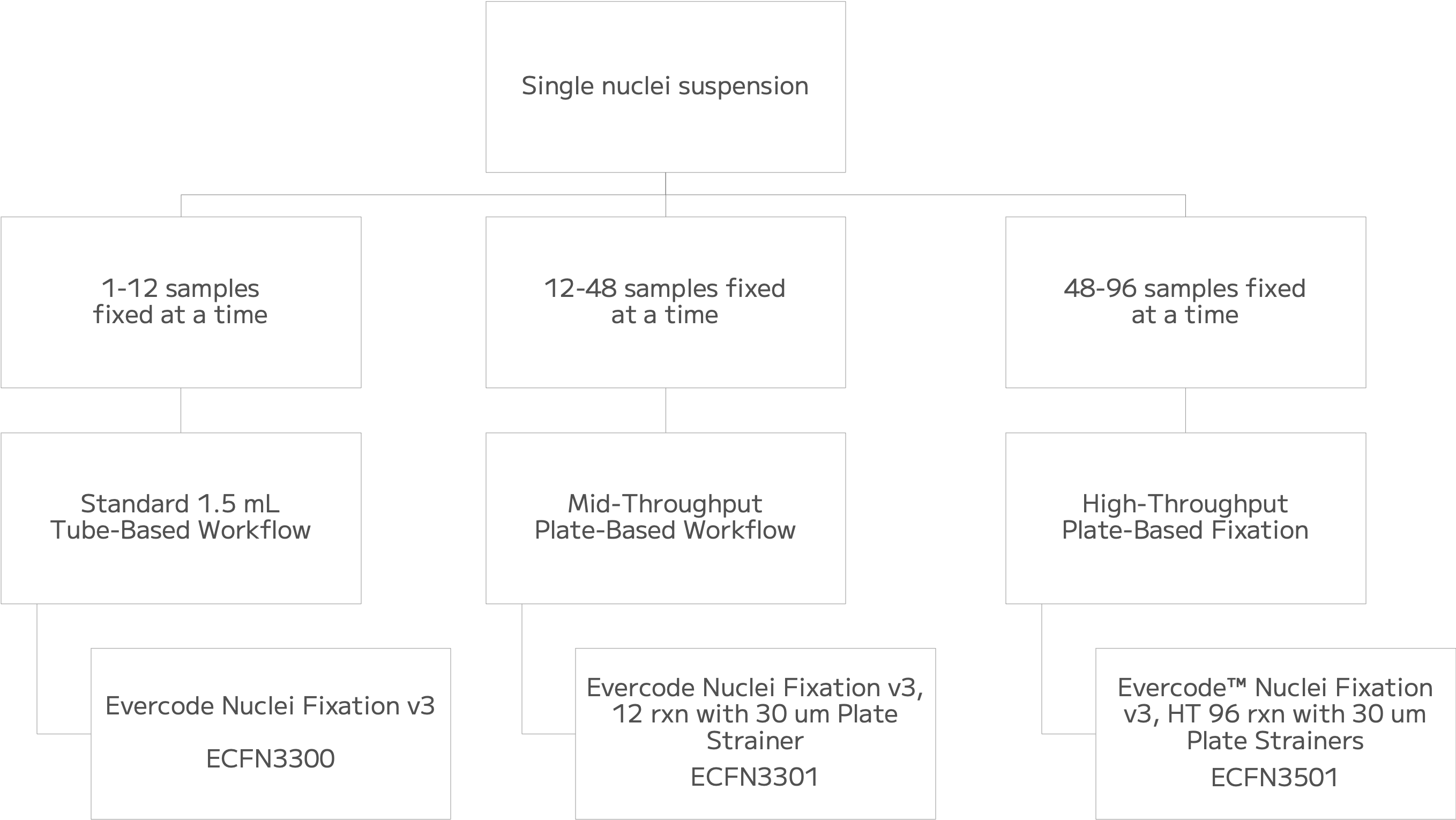

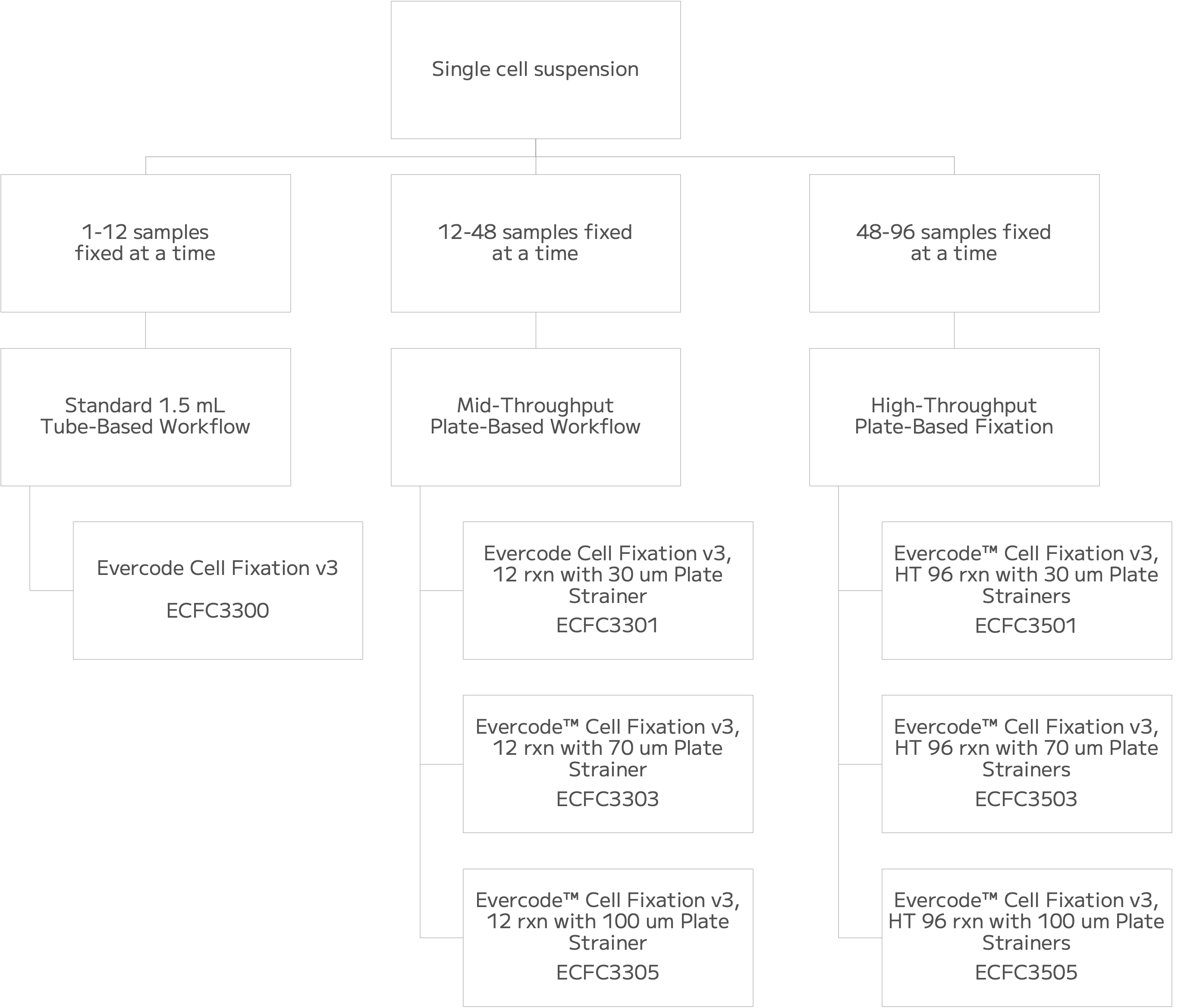

Between 1-96 samples can be fixed in parallel with EvercodeTM Cell Fixation v3 and Evercode Nuclei Fixation v3 kits for inputs of 100,000 to 4M1 cells/nuclei or Evercode Low Input Cell Fixation v3 and Evercode Low Input Nuclei Fixation v3 for inputs from 10,000 to 100,000 cells/nuclei. Depending on the number of samples being processed, we recommend different workflows and kits. See the tables below for detailed recommendations.
Note: In order to maximize the cell/nuclei quality, high-throughput fixation kits are only recommended for projects where 48-96 samples can be prepared at the same time.
| Cell and Nuclei Fixation kits | |||||||
Input (cells/nuclei per sample) |
# samples to fix at the same time |
Format |
Strainer |
Cells |
Nuclei |
||
PN |
User Guide |
PN |
User Guide |
||||
|
Standard3 100,000 to 1M |
1-12 |
1.5 mL tube or Plate- based3 |
Not included |
ECFC3300 |
ECFN3300 |
||
|
Mid- Throughput 12-482 |
Plate- based |
30µM |
ECFC3301 |
ECFN3301 |
|||
70µM |
ECFC3303 |
||||||
100µM |
ECFC3305 |
||||||
|
High- Throughput 48-96 |
Plate- based |
30µM |
ECFC3501 |
ECFN3501 |
|||
70µM |
ECFC3503 |
||||||
100µM |
ECFC3505 |
||||||
|
Low 10,000 to 100,000 |
1-12 |
0.2 mL tube |
30µM |
ECLC3301 |
ECLN3301 |
||
70µM |
ECLC3303 |
||||||
100µM |
ECLC3305 |
||||||
|
Mid- Throughput 12-482 |
Plate- based |
30µM |
ECLC3301 |
ECLN3301 |
|||
70µM |
ECLC3303 |
||||||
100µM |
ECLC3305 |
||||||
|
High- Throughput 48-96 |
Plate- based |
30µM |
ECLC3501 |
ECLN3501 |
|||
70µM |
ECLC3503 |
||||||
100µM |
ECLC3505 |
||||||
|
High 1M to 4M |
1-3 |
15 mL tube |
Not included |
ECFC3300 |
Appendix B of Evercode Cell Fixation v3 User Manual |
ECFN3300 |
Appendix B of Evercode Nuclei Fixation v3 User Manual |
1When using the High Input workflow, up to 3 samples can be fixed with one kit (PN ECFC3300 or ECFN3300).
2Mid-Throughput workflow requires multiple kits. Each part number ECFC3301, ECFC3303, ECFC3305, ECLC3301, ECLC3303, ECLC3305, ECFN3301, and ECLN3301 provides reagents for fixing up to 12 samples.
3Parse Evercode™ Cell and Nuclei Fixation workflows can be semi-automated using the INTEGRA ASSIST PLUS platform. For more information check the following link: Evercode Cell and Nuclei Fixation v3 and INTEGRA ASSIST PLUS Scripts
