Scanpy Tutorial - 65k PBMCs

  • First Published:
  • Updated:

Here we present an example analysis of 65k peripheral blood mononuclear blood cells (PBMCs) using the python package Scanpy. This tutorial is meant to give a general overview of each step involved in analyzing a digital gene expression (DGE) matrix generated from a Parse Biosciences single cell whole transcription experiment.  Please refer to the following resources for more information about Scanpy and single cell analysis in general:

Loading libraries and setting the location path for analysis data

import numpy as np
import pandas as pd
import scanpy as sc
import scipy
import os
import scipy.io as sio

data_path = '/volume-general/analysis/20201118-novaseq/data/pbmc/'

Adjusting Scanpy default settings

Scanpy allows you to customize various aspects of the default package behavior. You can find the full list of options here.

sc.settings.verbosity = 1 # verbosity: errors (0), warnings (1), info (2), hints (3)
sc.settings.set_figure_params(dpi=100, fontsize=10, dpi_save=300, figsize=(5,4), format='png')
sc.settings.figdir = '/volume-general/analysis/20201118-novaseq/figures/pbmc/'

Reading in data

After reading in the data we'll perform basic filtering on our expression matrix to remove low-quality cells and uninformative genes. The parameter "min_genes" will keep cells that have at least 300 genes, and similarly, "min_cells" will keep genes that are expressed in at least 5 cells.

# The DGE_filtered folder contains the expression matrix, genes, and files
# NOTE: split-pipe versions older than 1.1.0 used 'DGE.mtx'
adata = sc.read_mtx(data_path + 'count_matrix.mtx')

# reading in gene and cell data
gene_data = pd.read_csv(data_path + 'all_genes.csv')
cell_meta = pd.read_csv(data_path + 'cell_metadata.csv')

# find genes with nan values and filter
gene_data = gene_data[gene_data.gene_name.notnull()]
notNa = gene_data.index
notNa = notNa.to_list()

# remove genes with nan values and assign gene names
adata = adata[:,notNa]
adata.var = gene_data
adata.var.set_index('gene_name', inplace=True)
adata.var.index.name = None
adata.var_names_make_unique()

# add cell meta data to anndata object
adata.obs = cell_meta
adata.obs.set_index('bc_wells', inplace=True)
adata.obs.index.name = None
adata.obs_names_make_unique()

sc.pp.filter_cells(adata, min_genes=300)
sc.pp.filter_genes(adata, min_cells=5)

# Returns the dimensions of the expression matrix (cells, genes)
adata.shape

Cell quality control

In this step we'll perform cell quality control to prevent outlier cells from influencing downstream analyses. Cells that have an unusually high transcript or gene counts are very likely to be multiplets, which is a term for two or more cells that have identical barcodes. Conversely, cells that have very low transcript or genes counts are a consequence of barcoding cells with damaged membranes, or barcoding ambient RNA.

Filtering outliers can be accomplished by generating a violin plot for each cell feature and manually selecting the threshold we wish to remove cells. We'll also add another important cell feature that shows the percentage of mitochondrial genes expressed in each cell. Cells with high mitochondrial gene percentages should be removed, as they are likely to have lost cytoplasmic RNA from lysis or may have increased apoptosis (Luecken and Theis 2019).

adata.var['mt'] = adata.var_names.str.startswith('MT-')
sc.pp.calculate_qc_metrics(adata, qc_vars=['mt'], percent_top=None, log1p=False, inplace=True)

# Scanpy will prepend the string in the save argument with "violin"
# and save it to our figure directory defined in the first step.
sc.pl.violin(adata, ['n_genes_by_counts'], save='_n_genes', jitter=0.4)

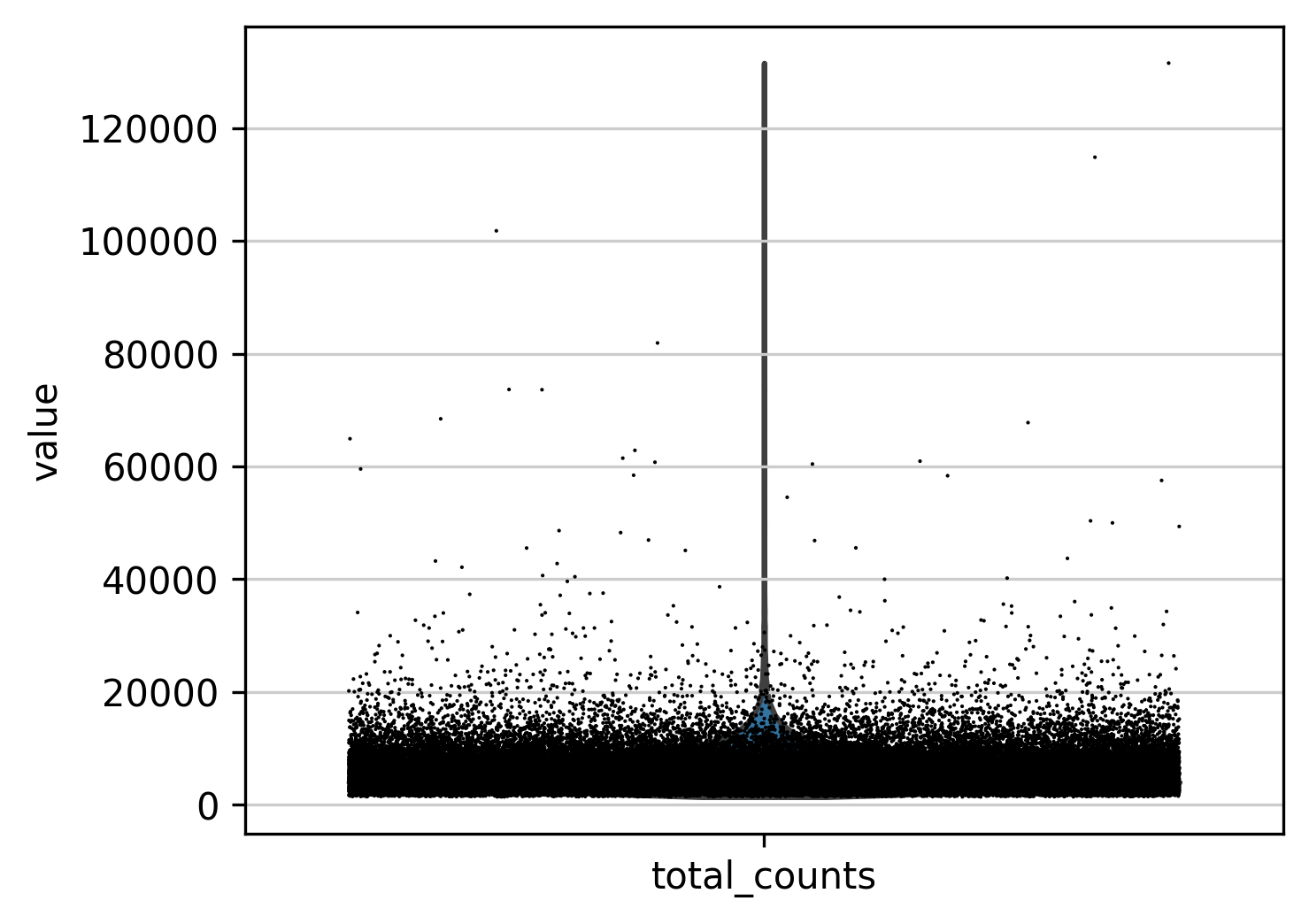

sc.pl.violin(adata, ['total_counts'], save='_total_counts', jitter=0.4)

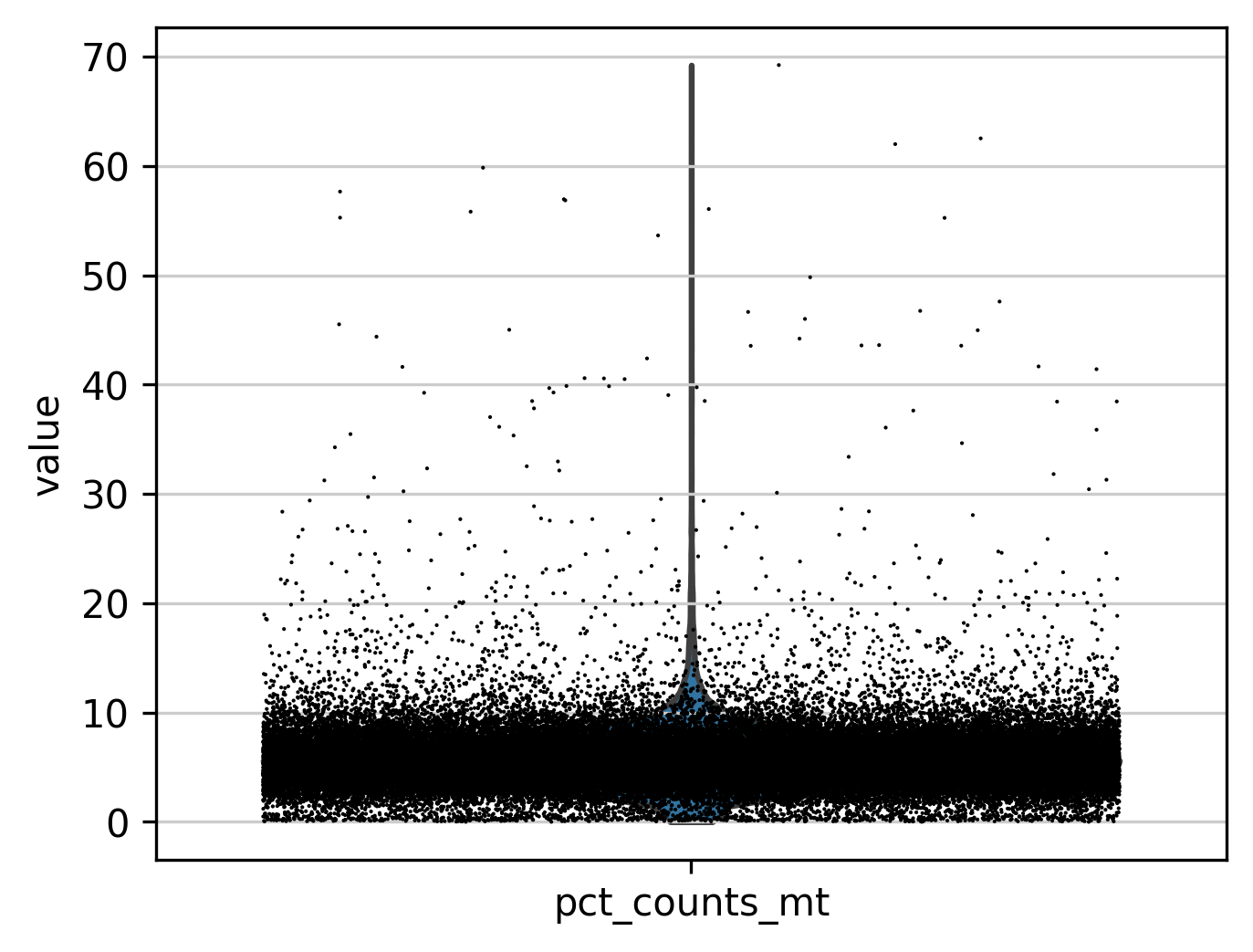

sc.pl.violin(adata, ['pct_counts_mt'], save='_mito_pct', jitter=0.4)






# Filter the data
adata = adata[adata.obs.n_genes_by_counts < 5000,:]
adata = adata[adata.obs.total_counts < 20000,:]
adata = adata[adata.obs.pct_counts_mt < 15,:]
adata.shape # Checking number of cells remaining

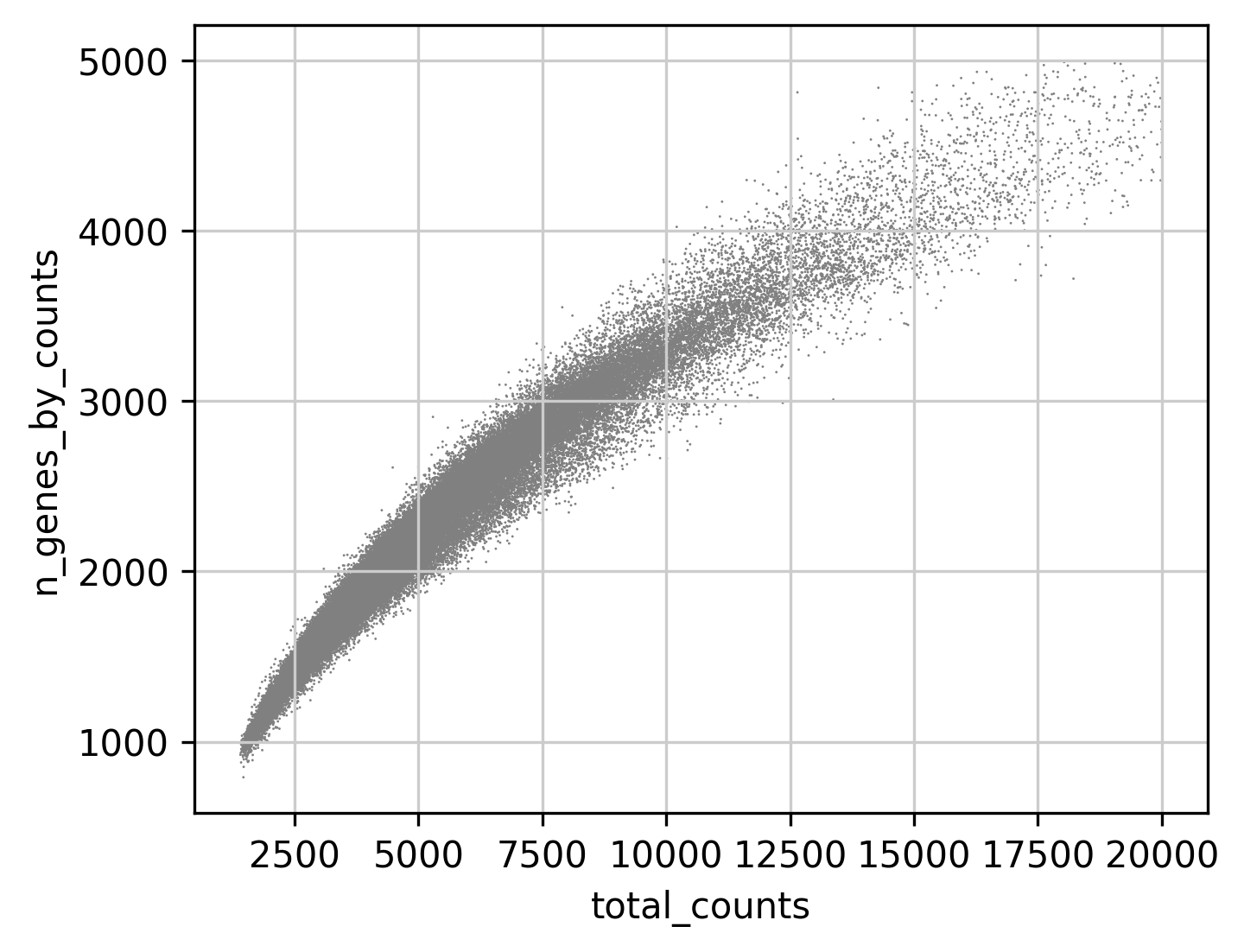

Lets visualize the results of our filtered data and print the updated median transcript and gene counts.

sc.pl.scatter(adata, x='total_counts', y='n_genes_by_counts', save='_gene_vs_transcript_counts')
print('median transcript count per cell: ' + str(adata.obs['tscp_count'].median(0)))
print('median gene count per cell: ' + str(adata.obs['gene_count'].median(0)))




median transcript count per cell: 5302.0
median gene count per cell: 2299.0

Now that we've removed the outlier cells, we can normalize the matrix to 10,000 reads per cell and log transform the results.

sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)

Identify highly-variable genes and regress out transcript counts

Our next goal is to identify genes with the greatest amount of variance (i.e. genes that are likely to be the most informative). This subset of genes will be used to calculate a set of principal components which will determine how our cells are classified using Leiden clustering and UMAP. You can fine tune variable gene selection by adjusting the min/max mean expression and min/max dispersion.

The regress out function is used to correct for biases in cell attributes, such as the number transcripts per cell. It's important to note that this step can merge cell populations with subtle differences in gene expression, which may or may not align with your analysis goals. You can always start a separate analysis without this feature to see which model suits your objectives.

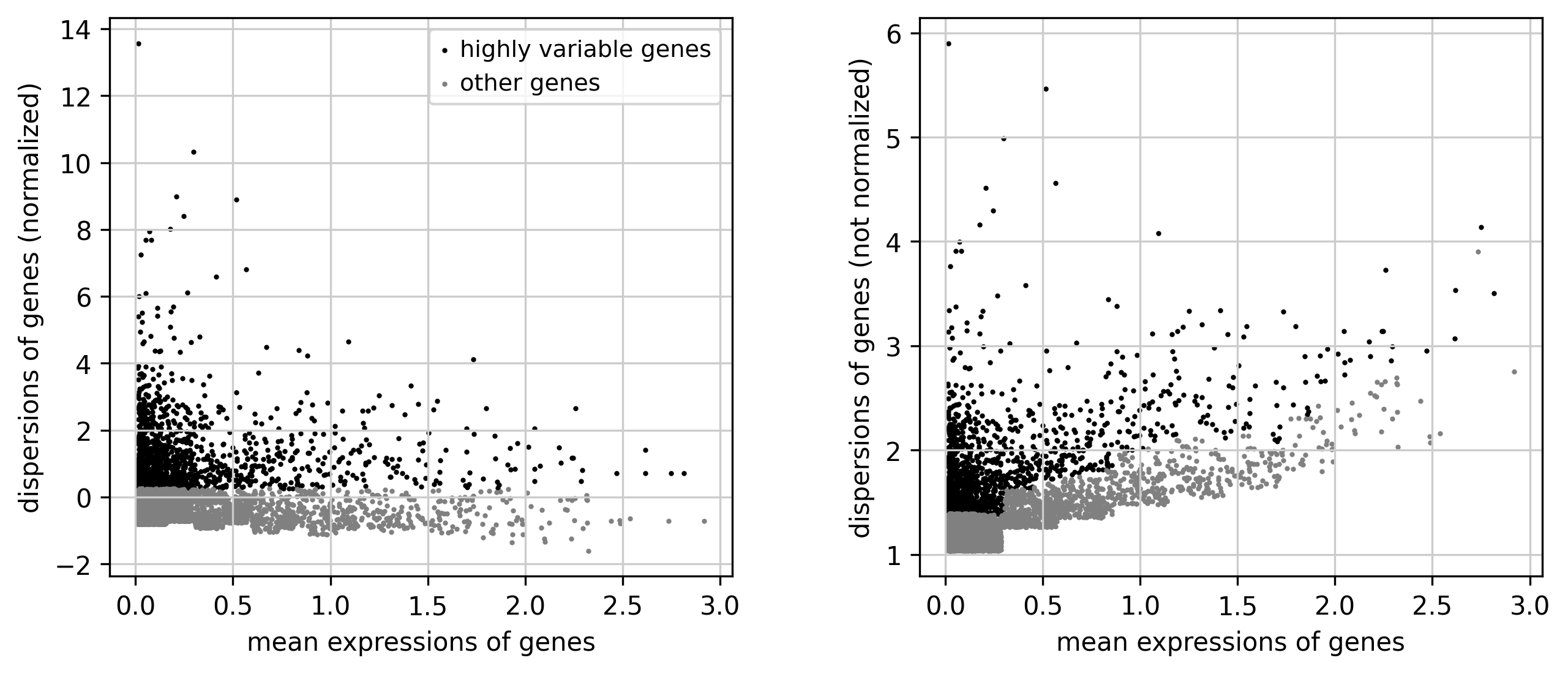

sc.pp.highly_variable_genes(adata, min_mean=0.0125, max_mean=3, min_disp=0.25)
sc.pl.highly_variable_genes(adata, save='') # scanpy generates the filename automatically

# Save raw expression values before variable gene subset
adata.raw = adata

adata = adata[:, adata.var.highly_variable]
sc.pp.regress_out(adata, ['total_counts'])
sc.pp.scale(adata, max_value=10)


Principal component analysis

Now that we've extracted the most "informative" cells and genes from our dataset, we can start the process of dimensional reduction by generating a list of principal components (PCs). Principal component analysis will reduce the number of columns (variable gene expression values) to set of PCs which explain the variance in our dataset. Here we're using a simple and effective method for choosing the PCs by plotting the variance ratio for each PC and choosing the last PC where the ratio starts to "flatten" out. For this particular dataset we've chosen 30 PCs, which will be passed to the "sc.pp.neighbors" function in the next step.

sc.tl.pca(adata, svd_solver='arpack')
sc.pl.pca_variance_ratio(adata, log=True, n_pcs=50, save='') # scanpy generates the filename automatically


UMAP and Leiden Clustering

This step will involve reducing the dimensionality of our data into two dimensions using uniform manifold approximation (UMAP), allowing us to visualize our cell populations as they are binned into discrete populations using Leiden clustering. The "n_neighbors" parameter in the "sc.pp.neighbors" function will determine the size of each cell cluster; lower values will translate to a greater number of clusters by breaking up the dataset into smaller communities, and visa versa for larger values. We can also fine tune the number of clusters using the resolution parameter in the "sc.tl.leiden" function.

sc.pp.neighbors(adata, n_neighbors=10, n_pcs=30)
sc.tl.umap(adata)
sc.tl.leiden(adata, resolution=0.5)
sc.pl.umap(adata, color=['leiden'], legend_fontsize=8, save='_leiden')




Finding cluster markers

After determining the appropriate number clusters, we'll perform a statistical test to find genes enriched in each cell population. For this example we'll use the simplest and quickest method, the t-test. Scanpy provides a number of different statistical tests which can be found here.

sc.tl.rank_genes_groups(adata, 'leiden', method='t-test')

# The head function returns the top n genes per cluster
top_markers = pd.DataFrame(adata.uns['rank_genes_groups']['names']).head(5)
print(top_markers)

Save/load the results

adata.write(data_path + 'adata_after_diffexp.h5ad')
adata = sc.read(data_path + 'adata_after_diffexp.h5ad')

Merging clusters and labeling cell types

A common goal of single cell RNA-seq analysis is to eventually classify all clusters into a cell "type". But what constitutes a cell type? Does a cluster represent a cell type, or a cell in a temporary state as it transitions from one type to the next? Because the appropriate number of clusters depends on the nature of the dataset and specific analysis goals, it's usually a good idea to experiment with models that vary in cluster number.

There may be situations where one can't seem to get the "right" number of clusters to build an accurate model of cell types (or cell states) in their system of interest. That is, you may have a  cluster that perfectly describe cells in one population, but another population may have too many subdivisions. In the following example we'll demonstrate how to merge multiple clusters into a single unit to classify basic PBMC cell types, but it's important to note that this strategy can be used in any scenario where one wishes to customize cell classification.

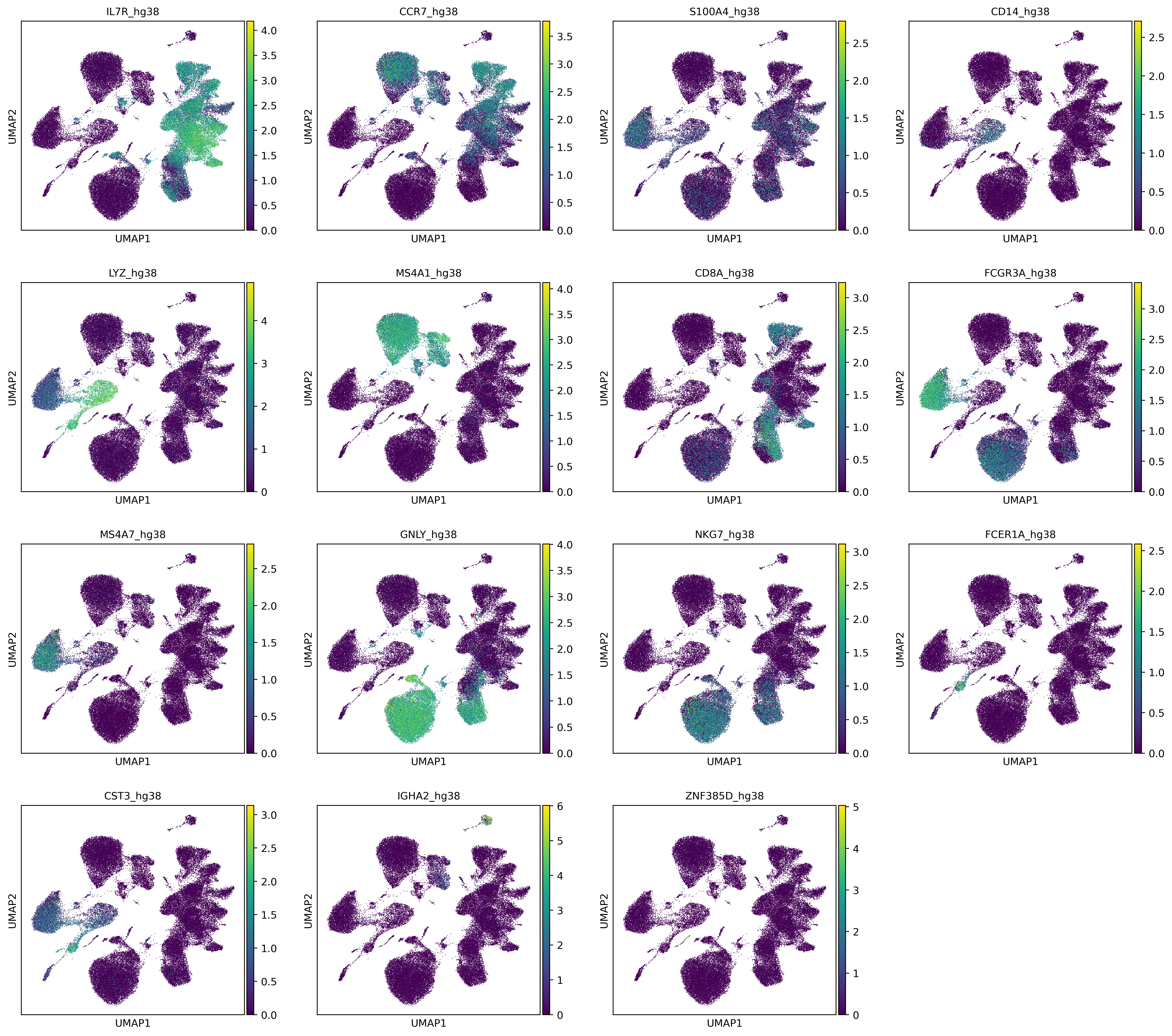

First we'll take a look at the markers from the Seurat official tutorial and see which genes correspond to cell type, and then plot each gene on a UMAP plot to see which cluster they localize with.

Cluster ID Markers Cell Types
0 IL7R, CCR7 Naive CD4+ T
1 IL7R, S100A4 Memory CD4+
2 CD14, LYZ CD14+ Mono
3 MS4A1 B
4 CD8A CD8+ T
5 FCGR3A, MS4A7 FCGR3A+ Mono
6 GNLY, NKG7 NK
7 FCER1A, CST3 DC
8 PPBP Platelet

Note that the platelet marker PPBP isn't present in this dataset. We also have a couple unclassified clusters that aren't present in the official tutorial. We'll name these two clusters after their top marker genes, IGHA2 and ZNF385D.

gene_list = ['IL7R', 'CCR7', 'S100A4', 'CD14', 'LYZ', 'MS4A1', 'CD8A',
    'FCGR3A', 'MS4A7', 'GNLY', 'NKG7', 'FCER1A', 'CST3', 'IGHA2', 'ZNF385D']

sc.pl.umap(adata, color=[i + '_hg38' for i in gene_list], color_map='viridis', legend_fontsize=8, save='_PBMC_markers')


Next, lets generate a UMAP plot with the clusters explicitly labeled so it's a easier to see which cluster corresponds with our PBMC markers.


The last step involves generating a dictionary where each cell type is assigned multiple clusters so they can be merged.

# Fill in the clusters that belong to each cell type based on each marker in the plot above
cell_dict = {'CD4 T': ['3','4','6','9','10','12'], 'CD14+ Mono': ['8'], 'B': ['1','7','11'], 'CD8 T': ['2'],
    'FCGR3A+ Mono': ['5'], 'NK': ['0','14','17','18'], 'DC': ['13','16'], 'IGHA+': ['15'], 'ZNF385D+': ['19']}

# Initialize empty column in cell metadata
adata.obs['merged'] = np.nan

# Generate new assignments
for i in cell_dict.keys():
    ind = pd.Series(adata.obs.leiden).isin(cell_dict[i])
    adata.obs.loc[ind,'merged'] = i

sc.pl.umap(adata, color=['merged'], legend_loc='on data', legend_fontsize=6, save='_merged_new_lbl')

Our final UMAP with cell names.
